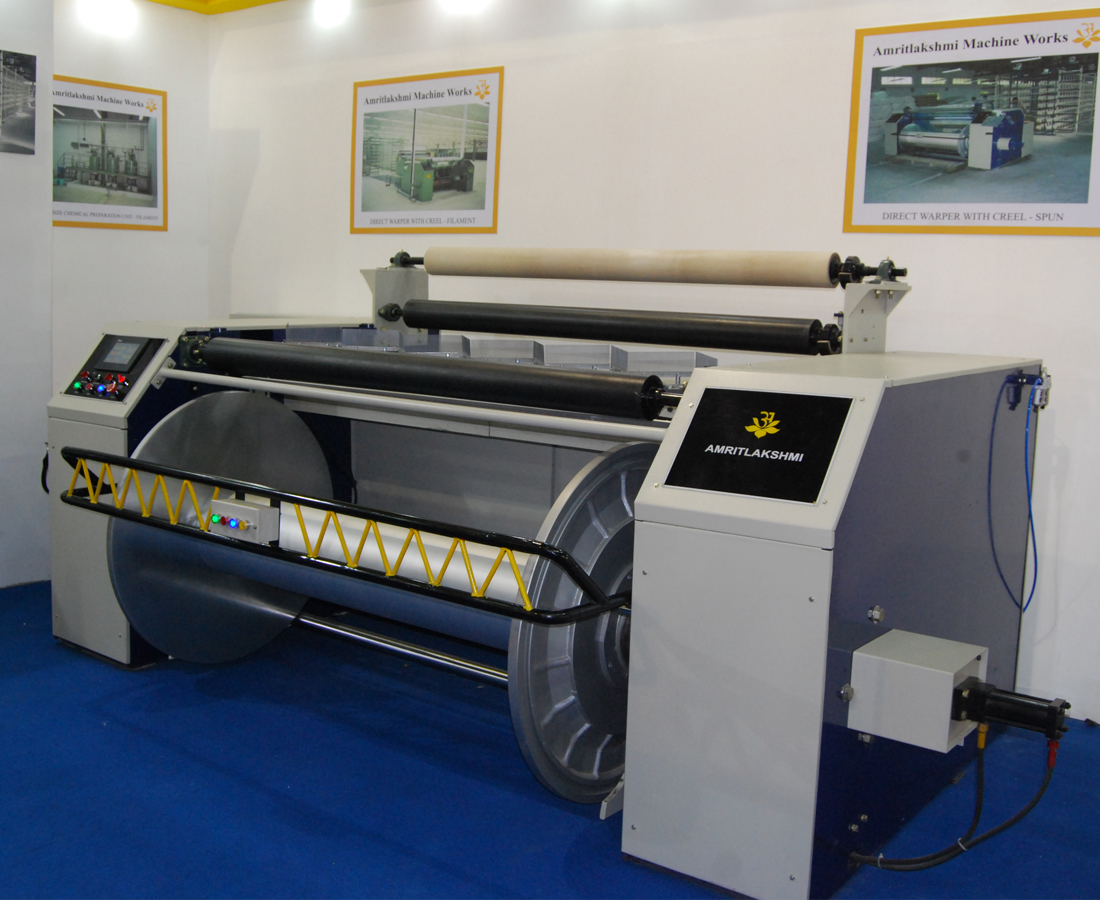

The Amritlakshmi Versatile High Speed Direct Warper is available for all kinds of Cotton /PV/PC SPUN Yarn including Spun Polyester/ Spun Viscose.
The entire Warping process begins from our sturdy and well aligned Creel of different capacities and is matched by a Heavy Duty Headstock available in different widths and Flange diameters to wind the Warp Yarn on Dynamically Balanced Beams at High Speeds depending on the Yarn and based on our unique ‘Spindle Driven System’ coupled with powerful Hydraulic/Pneumatic Brakes.
Headstock Width Between Flanges: | 1800/2000/2200/2286/2400 mm |
Flange Diameter: | 800/1000/1250/1400 mm |
System of Operation: | Spindle Driven/ Drum Driven (Hydraulic /Pneumatic) |
Warping Speed: | 1000 mts/min. |
Drive: | AC Inverter (Servo or Vector) with PLC Control & Touch Screen. |
Creel: | H-Parallel / Magazine Type/V-Creel/ Truck Creel |
Creel Capacity: | 560/640/704/768/800 |
Pitch : | 280/300 |
Stop Motion: | Electronic (Infrared) / Electro- Mechanical |
Blower : | Travelling Blower (Optional) for Spun Yarn |
If it is Weaving Preparatory machines for Airjet / Waterjet / Rapier Weaving
Amritlakshmi is a right choice !!
